AP1 LIGHT ENGINE
ANDROMEDA 8 in (AP1)
STRLT-AP1-ST-08-188-WH-120-5S
Measured range across available CCTs17.721–18.001 W · 1,589.1–1,700.7 lm · 89.68–94.47 lm/W
- Input watts
- 17.851 W
- Measured lumens
- 1,611.7 lm
- Efficacy
- 90.29 lm/W
- Power factor
- 0.9216
STARLET PROFESSIONAL RESOURCES
Technical resources.
Find current STARLET specification sheets, installation guides and measured photometric files for project documentation and lighting calculations.
PHOTOMETRIC PERFORMANCE
Measured files for lighting calculations.
Measured photometric files are available for seven standard STARLET light engines in five CCTs. Select the engine and color temperature used on your project to download the matching files.
AP1 LIGHT ENGINE
ANDROMEDA 11 in (AP1)
STRLT-AP1-ST-11-248-WH-120-5S
Measured range across available CCTs23.404–23.671 W · 2,098.9–2,247.9 lm · 89.68–94.96 lm/W
- Input watts
- 23.486 W
- Measured lumens
- 2,145.4 lm
- Efficacy
- 91.35 lm/W
- Power factor
- 0.9250
RP1 LIGHT ENGINE
RADDAN 5 in (RP1)
STRLT-RP1-ST-05-118-WH-120-5S
Measured range across available CCTs11.168–11.290 W · 643.1–722.1 lm · 57.46–63.96 lm/W
- Input watts
- 11.255 W
- Measured lumens
- 670.6 lm
- Efficacy
- 59.58 lm/W
- Power factor
- 0.9377
RP1 LIGHT ENGINE
RADDAN 7 in (RP1)
STRLT-RP1-ST-07-128-WH-120-5S
Measured range across available CCTs11.992–12.251 W · 847.2–937.6 lm · 70.50–77.03 lm/W
- Input watts
- 12.120 W
- Measured lumens
- 875.9 lm
- Efficacy
- 72.27 lm/W
- Power factor
- 0.9286
RP1 LIGHT ENGINE
RADDAN 9 in (RP1)
STRLT-RP1-ST-09-188-WH-120-5S
Measured range across available CCTs18.412–18.733 W · 1,361.0–1,486.8 lm · 73.73–79.53 lm/W
- Input watts
- 18.564 W
- Measured lumens
- 1,400.7 lm
- Efficacy
- 75.45 lm/W
- Power factor
- 0.9283
RP1 LIGHT ENGINE
RADDAN 12 in (RP1)
STRLT-RP1-ST-12-248-WH-120-5S
Measured range across available CCTs23.987–24.425 W · 1,878.0–2,040.8 lm · 78.16–83.55 lm/W
- Input watts
- 24.147 W
- Measured lumens
- 1,922.0 lm
- Efficacy
- 79.60 lm/W
- Power factor
- 0.9190
RP1 LIGHT ENGINE
RADDAN 16 in (RP1)
STRLT-RP1-ST-16-308-WH-120-5S
Measured range across available CCTs30.186–30.695 W · 2,375.2–2,552.0 lm · 78.60–83.52 lm/W
- Input watts
- 30.420 W
- Measured lumens
- 2,423.8 lm
- Efficacy
- 79.68 lm/W
- Power factor
- 0.9241
SPECIFICATION DOCUMENTS
Current specification sheets.
Open the current STARLET product specification sheet for the exact SKU. Catalog product identity remains based on Revision A4.1.
DRACO
DRACO | 8 IN | BLACK GOLD
STRLT-AP1-BG-C36-08
DRACO
DRACO | 11 IN | BLACK GOLD
STRLT-AP1-BG-C36-11
DRACO
DRACO | 8 IN | MATTE BLACK
STRLT-AP1-BK-C36-08
DRACO
DRACO | 11 IN | MATTE BLACK
STRLT-AP1-BK-C36-11
SATURN
SATURN | 9 IN | BLACK GOLD
STRLT-RP1-BG-C26-09
SATURN
SATURN | 12 IN | BLACK GOLD
STRLT-RP1-BG-C26-12
SATURN
SATURN | 16 IN | BLACK GOLD
STRLT-RP1-BG-C26-16
SATURN
SATURN | 9 IN | WHITE GOLD
STRLT-RP1-WG-C26-09
SATURN
SATURN | 12 IN | WHITE GOLD
STRLT-RP1-WG-C26-12
SATURN
SATURN | 16 IN | WHITE GOLD
STRLT-RP1-WG-C26-16
SATURN
SATURN | 9 IN | MATTE BLACK
STRLT-RP1-BK-C26-09
SATURN
SATURN | 12 IN | MATTE BLACK
STRLT-RP1-BK-C26-12
SATURN
SATURN | 16 IN | MATTE BLACK
STRLT-RP1-BK-C26-16
WHIRLPOOL
WHIRLPOOL | 5 IN | MATTE BLACK
STRLT-RP1-BK-C27-05
WHIRLPOOL
WHIRLPOOL | 7 IN | MATTE BLACK
STRLT-RP1-BK-C27-07
WHIRLPOOL
WHIRLPOOL | 5 IN | MATTE WHITE
STRLT-RP1-WH-C27-05
WHIRLPOOL
WHIRLPOOL | 7 IN | MATTE WHITE
STRLT-RP1-WH-C27-07
TOPOPOLIS
TOPOPOLIS | 5 IN | MATTE BLACK
STRLT-RP1-BK-C32-05
TOPOPOLIS
TOPOPOLIS | 7 IN | MATTE BLACK
STRLT-RP1-BK-C32-07
TOPOPOLIS
TOPOPOLIS | 5 IN | MATTE WHITE
STRLT-RP1-WH-C32-05
TOPOPOLIS
TOPOPOLIS | 7 IN | MATTE WHITE
STRLT-RP1-WH-C32-07
OSIRIS
OSIRIS | 5 FT | MATTE BLACK
STRLT-RP1-BK-P21-05
OSIRIS
OSIRIS | 5 FT | MATTE WHITE
STRLT-RP1-WH-P21-05
CERES
CERES | 5 FT | MATTE BLACK
STRLT-RP1-BK-P13-05
CERES
CERES | 5 FT | MATTE WHITE
STRLT-RP1-WH-P13-05
JUPITER
JUPITER | 9 IN | MATTE BLACK
STRLT-RP1-BK-P23-09
ERIS
ERIS | 9 IN | MATTE WHITE
STRLT-RP1-WH-P28-09
ANDROMEDA
ANDROMEDA 6-Inch Light Engine
STRLT-AP1-SE-06-128-WH-120-5S
ANDROMEDA
ANDROMEDA 8-Inch Light Engine
STRLT-AP1-ST-08-188-WH-120-5S
ANDROMEDA
ANDROMEDA 11-Inch Light Engine
STRLT-AP1-ST-11-248-WH-120-5S
RADDAN
RADDAN 5-Inch Light Engine
STRLT-RP1-ST-05-118-WH-120-5S
RADDAN
RADDAN 7-Inch Light Engine
STRLT-RP1-ST-07-128-WH-120-5S
RADDAN
RADDAN 9-Inch Light Engine
STRLT-RP1-ST-09-188-WH-120-5S
RADDAN
RADDAN 12-Inch Light Engine
STRLT-RP1-ST-12-248-WH-120-5S
RADDAN
RADDAN 16-Inch Light Engine
STRLT-RP1-ST-16-308-WH-120-5S
35 current specification sheets are available in this release.

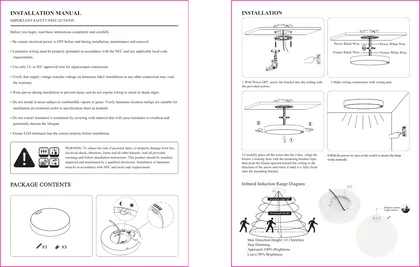

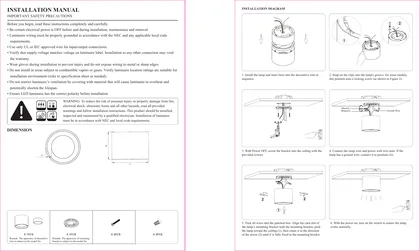

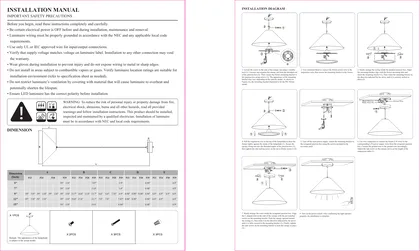

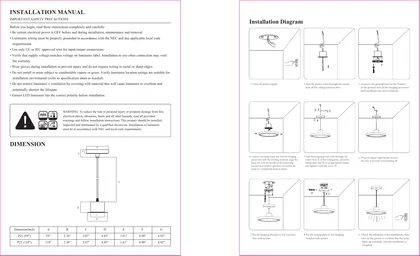

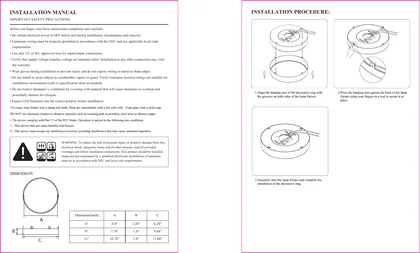

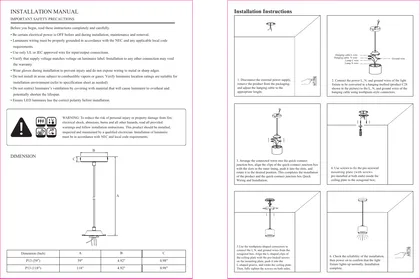

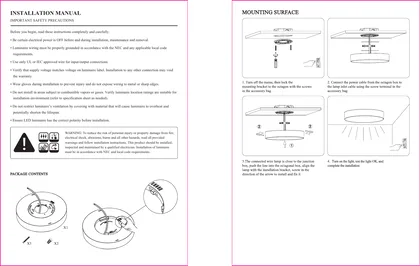

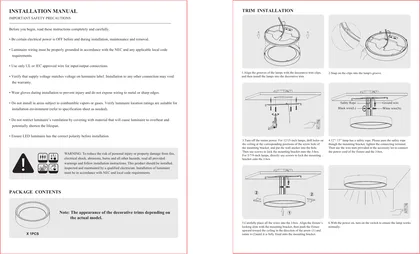

INSTALLATION GUIDES
Field documents by platform.
Nine approved installation guides are organized by the STARLET product family and application they support.
ANDROMEDA / AP1
RADDAN / RP1
RP1

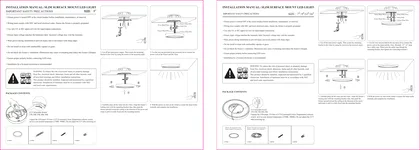

Surface-Mount — 5 / 7 / 9 / 12 / 16 in
RP1 · surface mount · 5 in · 7 in · 9 in · 12 in · 16 in
Open Guide Download PDF
LISTING / TECHNICAL DOCUMENTATION
ETL / cETL listing — applicable models.
Intertek documentation identifies applicable STARLET model patterns in an ETL / cETL listing context and references UL 1598 and CSA C22.2 No. 250.0. Verify the exact model for the project.
Listing coverage is model-qualified; it should not be read as a universal statement for every STARLET configuration.
STARLETTECHNICAL DOCUMENTATIONPRODUCT INFORMATION · INSTALLATION · PERFORMANCE
SPECIFICATION CONFIDENCE
Documentation you can use.
STARLET technical information is organized so lighting professionals can confirm products, performance, installation requirements and applicable third-party listings without sorting through internal records.
THIRD-PARTY LISTING
ETL / cETL listing
Applicable STARLET model patterns appear in third-party listing documentation. Verify the exact model before specification or installation.
Review applicable listingSTARLET DOCUMENTATION
Luminaire safety standards
The applicable listing documentation references UL 1598 and CSA C22.2 No. 250.0.
Review applicable listingSTARLET DOCUMENTATION
5-CCT selection
Standard STARLET 5S light engines offer 2700K / 3000K / 3500K / 4000K / 5000K selection. Verify the exact engine for the project.
View measured photometrySTARLET DOCUMENTATION
Color quality
Use the published report value where available. Current STARLET light-engine documentation otherwise identifies CRI 80+ for supported records.
View STARLET CatalogSTARLET DOCUMENTATION
TRIAC dimming to 10%
Seven standard STARLET light engines identify TRIAC dimming to 10%. The AP1 6-inch PIR configuration is handled separately.
View STARLET CatalogSTARLET DOCUMENTATION
Measured photometry available
CCT-specific IES, LDT and laboratory photometric reports are available for seven standard STARLET light engines.
View measured photometrySTARLET DOCUMENTATION
Installation documentation
Nine STARLET installation guides are available for the applicable product families and configurations.
View installation guidesSTARLET DOCUMENTATION
Indoor architectural scope
Current STARLET product information is scoped to indoor architectural lighting. Verify the exact model and application before specification.
View STARLET CatalogPROJECT SUPPORT
Need help confirming a file?
Need help confirming a STARLET configuration, photometric file or specification document? SunSpark project support can help.
